GeordieM Posted November 11, 2014 Share Posted November 11, 2014 (edited) Hi all, I'm having some troubles rendering an image sequence with an alpha channel. FYI I'm writing to the alpha in my Houdini shader. So if I render to mPlay, the alpha is present and correct. If I save the file from mPlay it is also correct. If I load the file in Photoshop it has a separate Alpha channel below the RGB channels and each channel is 8bits per pixel. This is what I've tried, I had Quantization = 8bit for all: If I render a single frame to Tiff or PNG I get the alpha channel, but in Photoshop it makes the base layer transparent instead of creating an extra Alpha channel in the "Channels" panel. If I render a single frame to Exr, I get a correct Alpha channel but each channel is 32bpp instead of 8bit like I set in the render options. If I render a sequence of frames and to Tiff or PNG, no alpha is present at all. If I render a sequence of frames to Exr I get a correct Alpha channel but each channel is 32bpp instead of 8bit like I set in the render options. Is there a way to render a sequence of frames to an image that will result in 8bits per pixel and a separate Alpha channel when loaded into Photoshop? Ideally I'd like to render directly to a DDS volume texture but that's not going to happen Thanks! Geordie Edited November 11, 2014 by GeordieM Quote Link to comment Share on other sites More sharing options...
GeordieM Posted November 11, 2014 Author Share Posted November 11, 2014 And to confuse the issue it looks like different versions of Photoshop treat Exr differently. If I load a rendered Exr into Photoshop CS3 it give's me a separate Alpha channel, but Photoshop CS5 puts the transparency into the base layer. Quote Link to comment Share on other sites More sharing options...
Guest tar Posted November 11, 2014 Share Posted November 11, 2014 Not sure how related to the OP but some background info, if you like, on Photoshop vs World discussion on Exr https://forums.adobe.com/thread/369637?start=0&tstart=0 Quote Link to comment Share on other sites More sharing options...
GeordieM Posted November 11, 2014 Author Share Posted November 11, 2014 marty thanks for that link! LOL that looks like a usual thread from Adobe. I once had an argument about them not natively supporting DDS textures in Photoshop. Textures are an array of data, nothing more, I should be able to store my grandmother in the alpha channel if I want to. This is what I'm doing: Render volume gradient (processed into normals) out in RGB Render volume density out to A The final images needs to be linear 8bpp with A kept as a separate channel and preferably a TGA to be correctly imported into our game engine. I'm animating a volume slice through the volume to give me slices of the density and normals. The problem with Exr is that it's HDR which means I need to sample the bit depth down to 8bpp, which means I have to apply a corrective gamma curve to keep it linear, which means my pixel values have been altered post rendering. I need to be able to output un-altered vector data directly from Houdini into images. I guess the fix for now will be to render the RGB normals and the A density out to two different images, but that makes me sad Or I stop relying on the render pipeline and write something to output the data directly into textures. Still would be good to clarify my original post, seems a bit weird that rendering a sequence would change the image data. TNKS! G Quote Link to comment Share on other sites More sharing options...

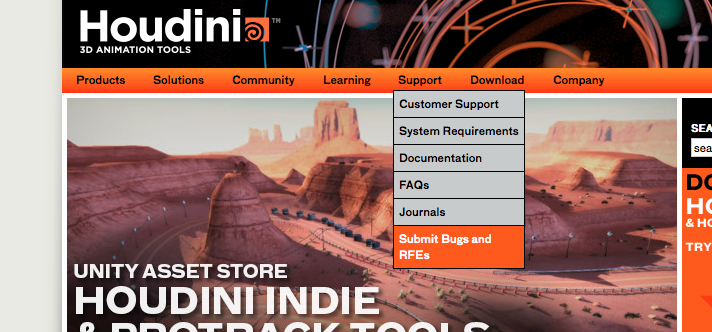

Guest tar Posted November 11, 2014 Share Posted November 11, 2014 Without Photoshop in front of me I can't directly help but I'd like to the get bit where the image sequence changes the render fixed up. Would it be possible to send an example file into Sesi via their bug submission at http://www.sidefx.com Thanks! Quote Link to comment Share on other sites More sharing options...
GeordieM Posted November 11, 2014 Author Share Posted November 11, 2014 NP! I'll do some more tests to make sure I'm not on crack then I'll submit a bug. Quote Link to comment Share on other sites More sharing options...
edward Posted November 12, 2014 Share Posted November 12, 2014 Or I stop relying on the render pipeline and write something to output the data directly into textures. It might not be too bad to do in Python because I'm guessing your game engine has volume limits. See hou.VDB.voxelRange Quote Link to comment Share on other sites More sharing options...
malexander Posted November 12, 2014 Share Posted November 12, 2014 Open EXR doesn't support 8b channels. It only supports 16b FP, 32b FP, and 32b int. Many programs encode 8b RGBA into the 32b int. Quote Link to comment Share on other sites More sharing options...
GeordieM Posted November 12, 2014 Author Share Posted November 12, 2014 Thanks edward. I just finished a 3DS max pipeline where I write animation data out to textures in Maxscript so I think I'll eventually do the same for this in Houdini. I've split the volume normals and density out to separate image planes for now, it works fine just have to do some post render processing. TNKS! G Quote Link to comment Share on other sites More sharing options...
